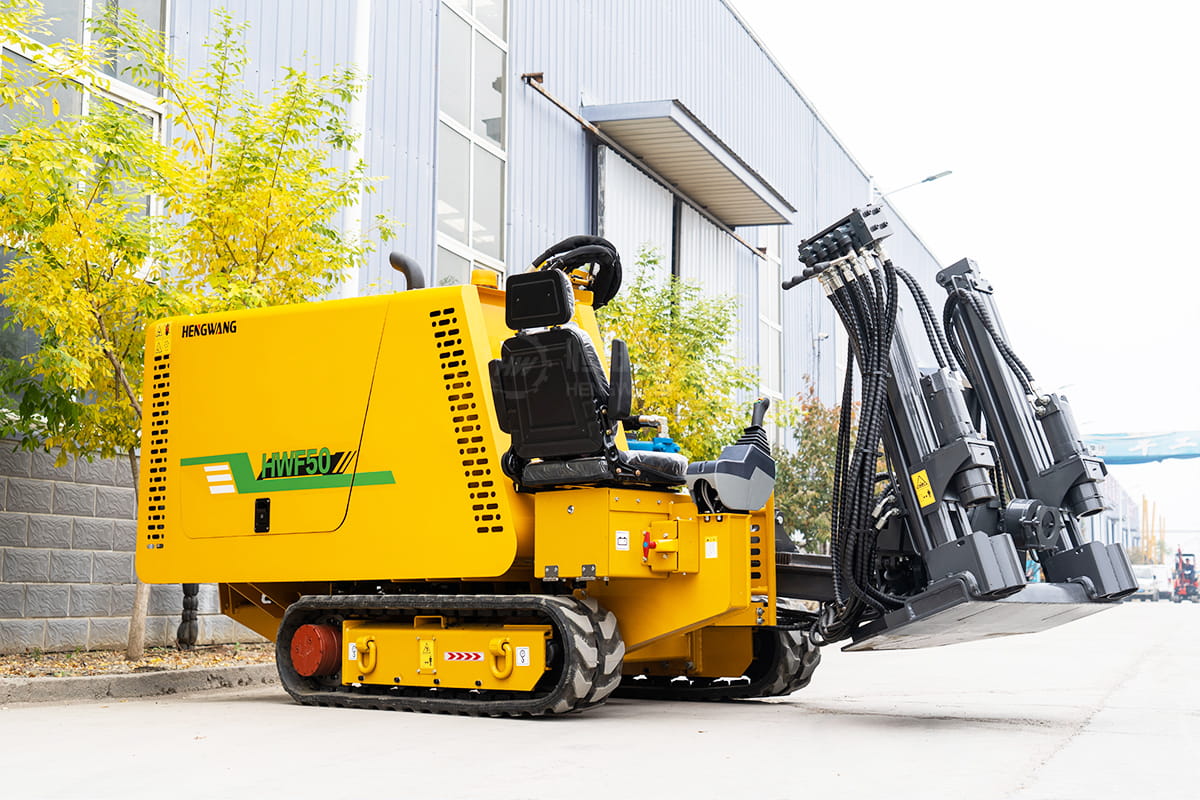

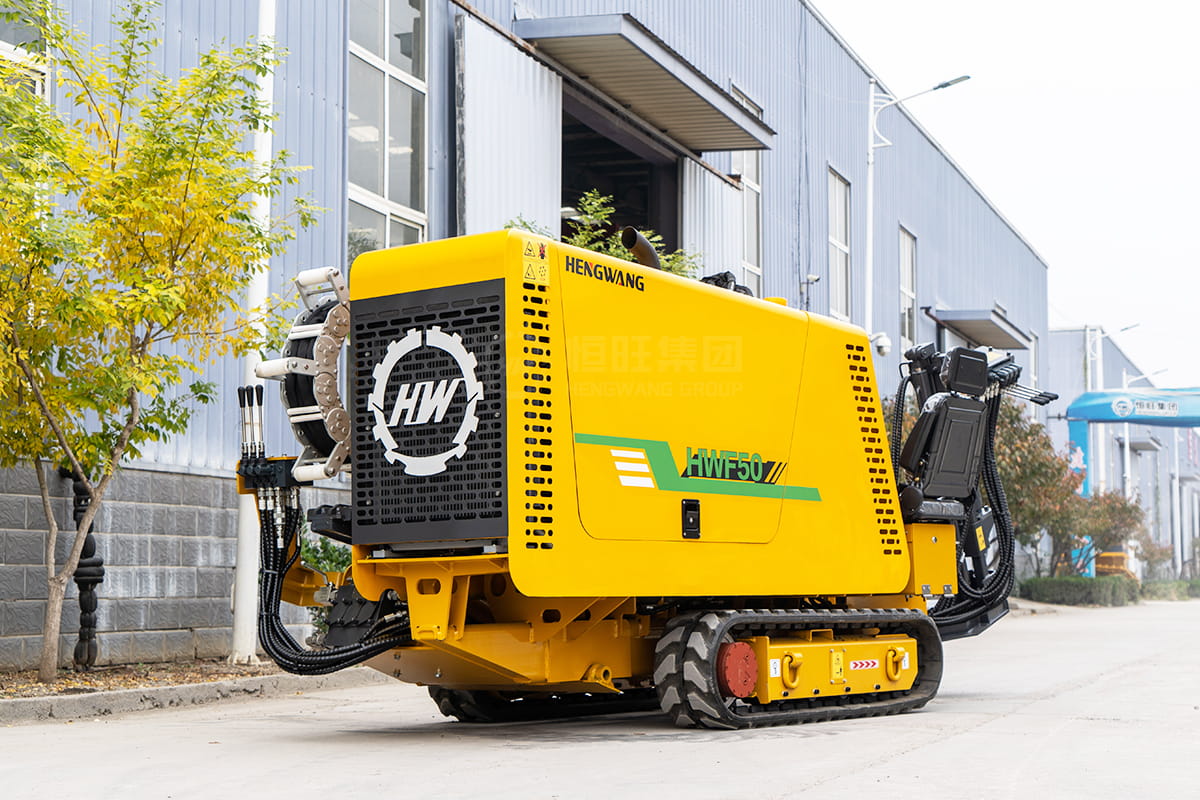

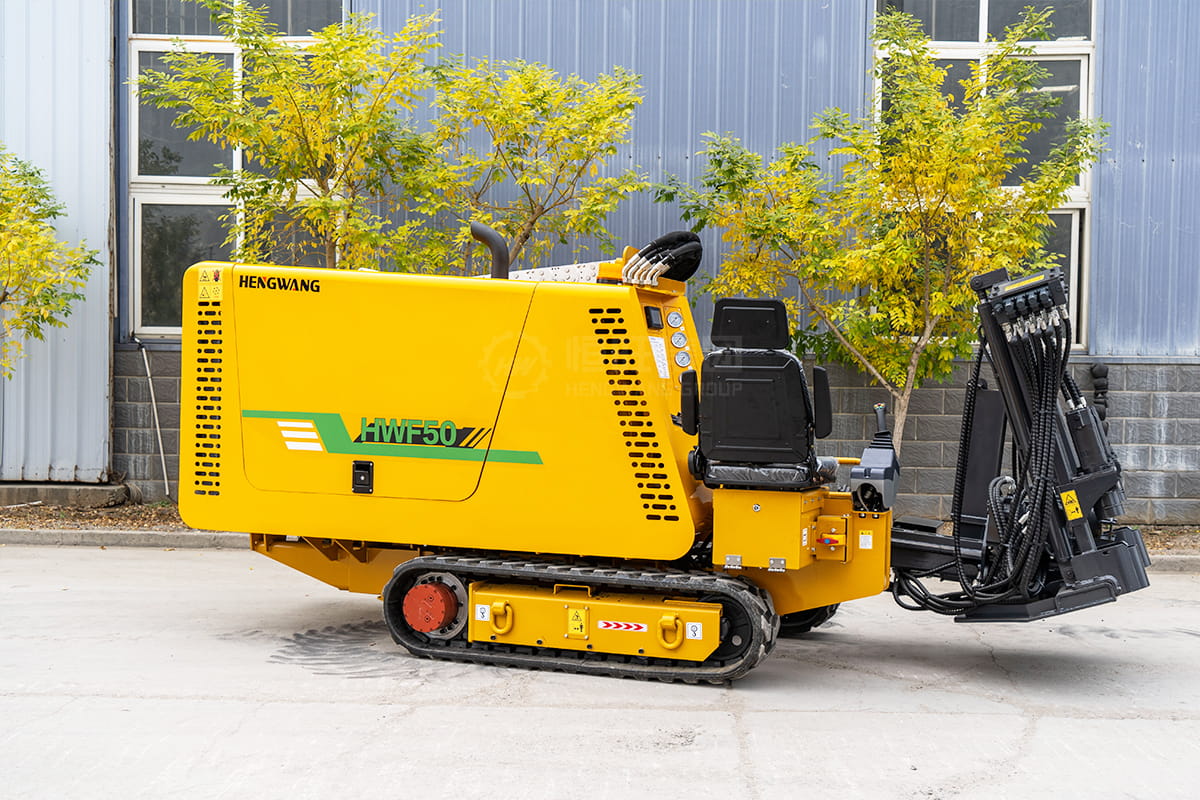

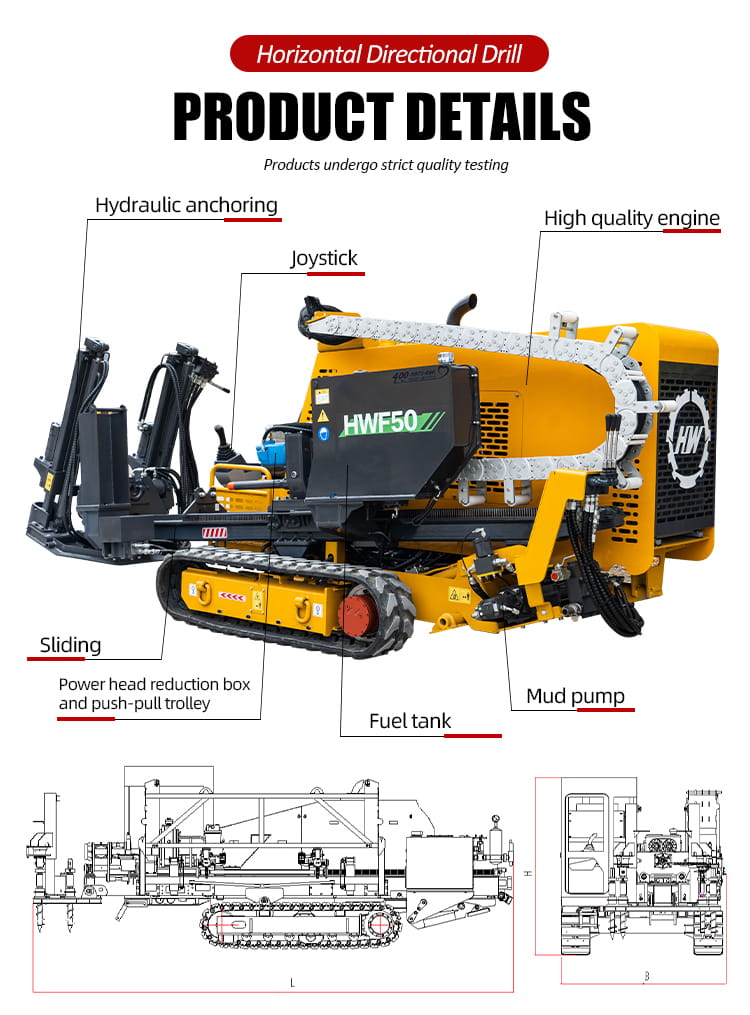

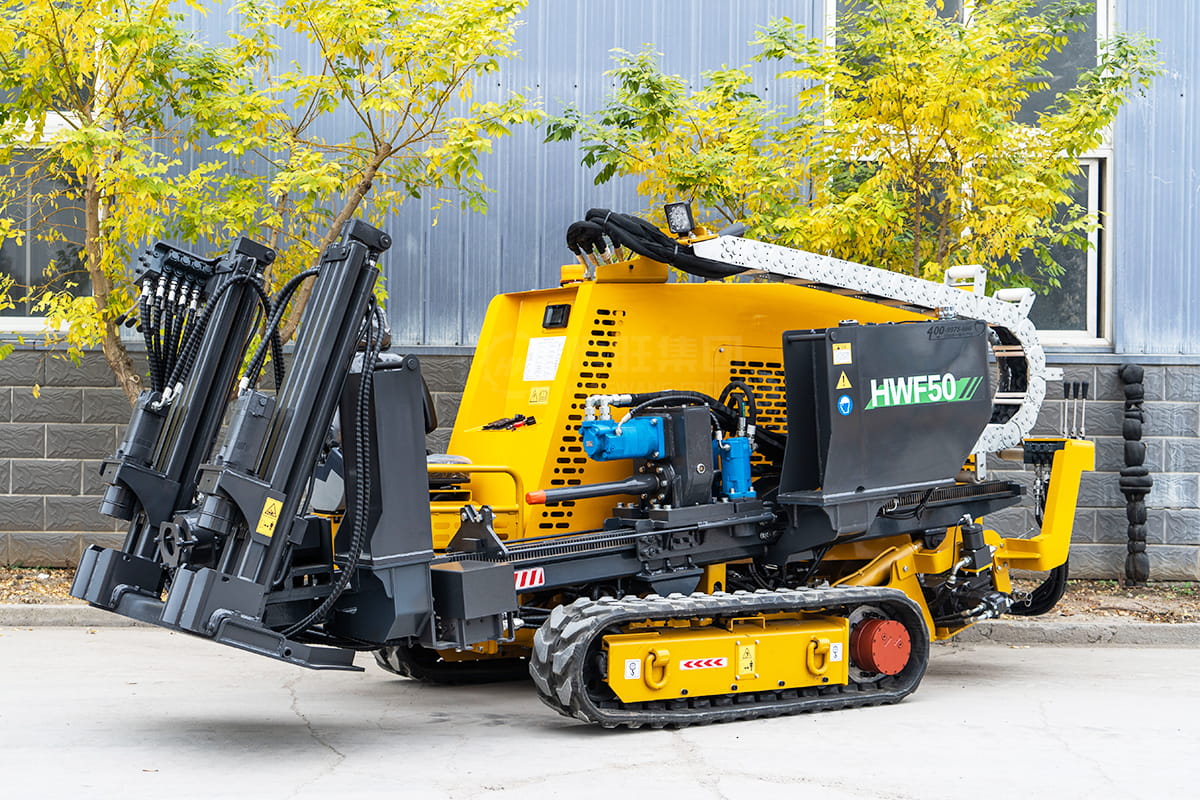

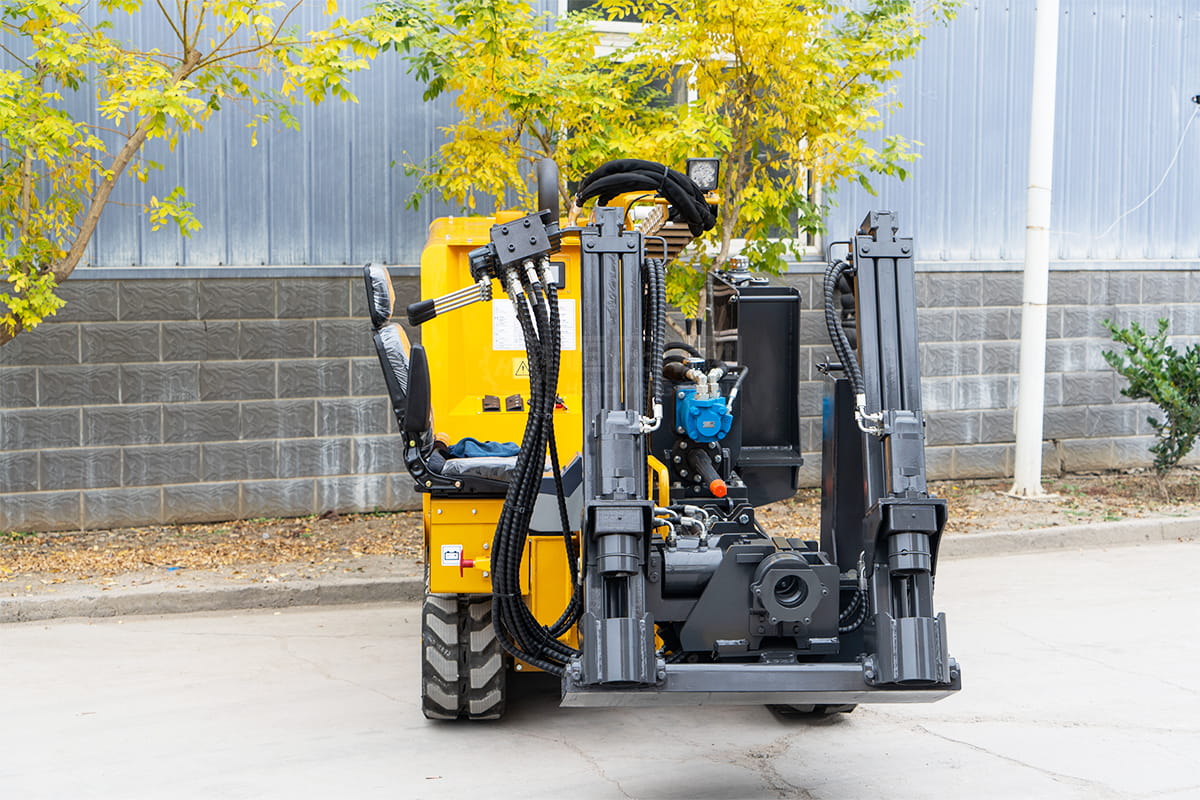

HWF50 horizontal directional drill rig
rated power：46.2/2200 KW/R/MIN
maximum torque:2235N-M
maximum pressure：20MPA
maximum torque:2235N-M
maximum pressure：20MPA

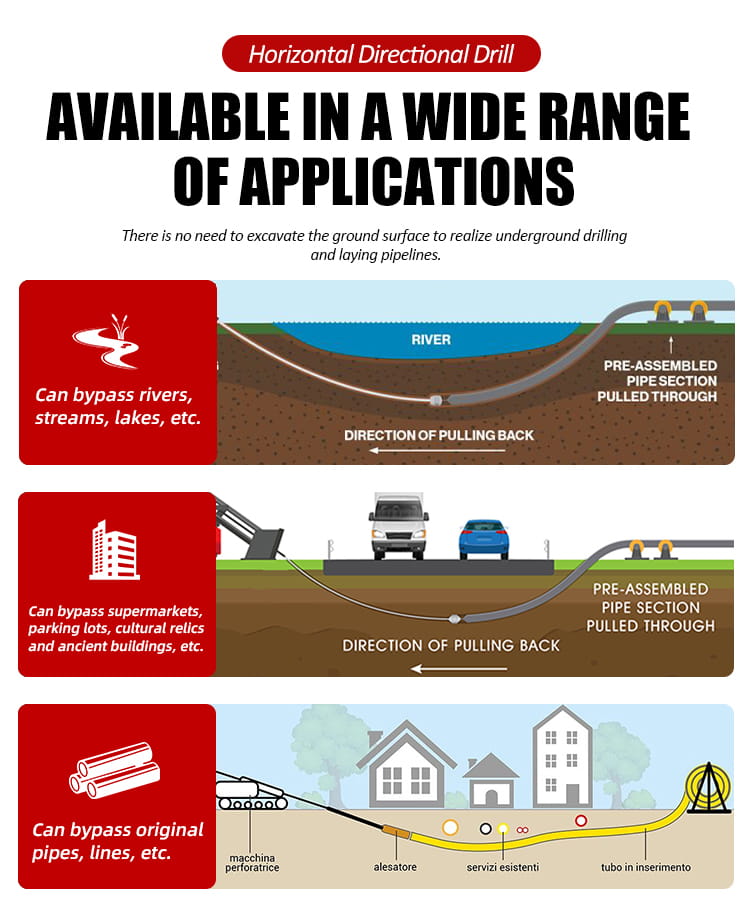

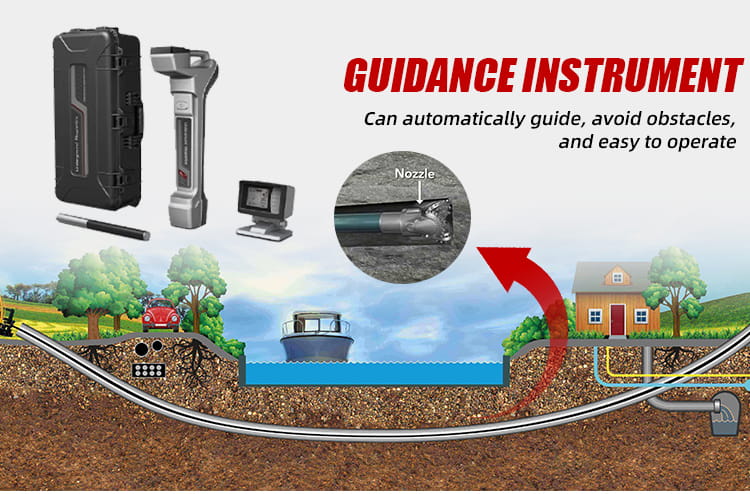

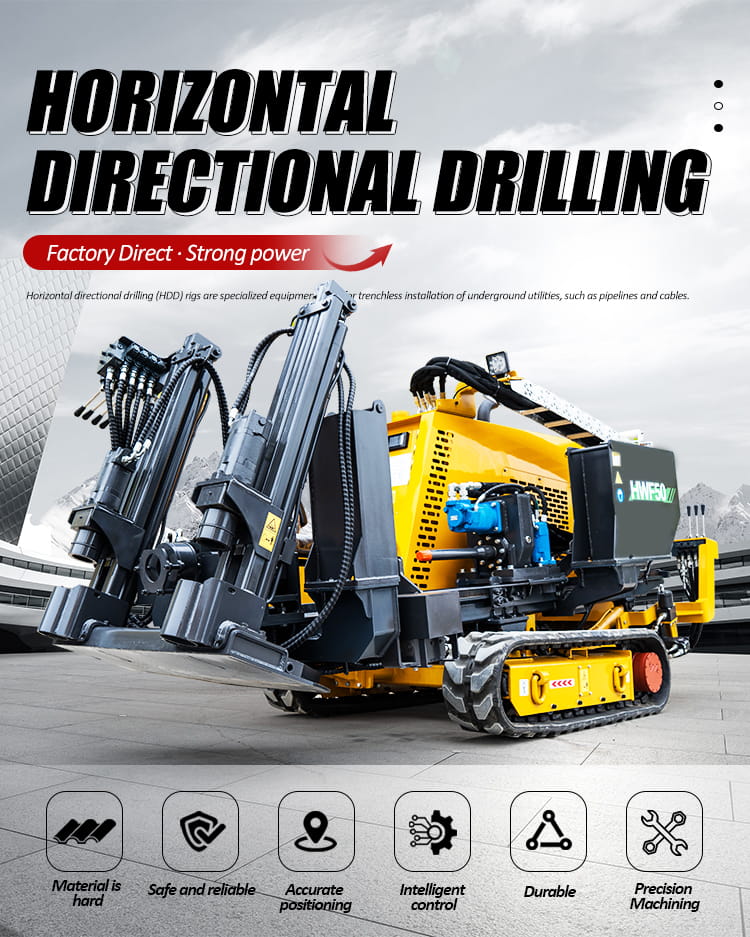

Horizontal directional drilling (HDD) rigs are specialized equipment used for trenchless installation of underground utilities, such as pipelines and cables. These rigs offer several advantages and have distinct characteristics:
| HW50F Horizontal Directional Drill | |||
| Machine Configuration | Operating Weight | 3450kg | |
| Engine Brand | Yanmar | ||
| Engine Model | 4TNV98C-CSCTY | ||
| Engine Power | 46.2KW | ||
| Fuel Tank Capacity | 72L | ||
| Main Pump Displacement | 76ml/r | ||
| Hydraulic Oil Tank Capacity | 120L | ||
| Working Pressure | 20Mpa | ||
| Dimensions | 3880*1330*1800mm | ||
| Hydraulic Anchoring Device | Standard configuration | ||
| Drill Rod Box | Holds 44 rods (φ42mm drill rods) | ||
| Technical Specification | Power Head Push/Pull | Drive Type | Single motor drive |
| Maximum Pullback/Feed Force | 50/50KN | ||
| Maximum Running Speed of Power Head | 61m/min | ||
| Power Head Rotation | Type | Single motor drive | |
| Maximum Rotation Speed | 215r/min | ||
| Maximum Torque of Power Head | 2235N·m | ||
| Drill Rod Specification | Standard configuration | φ42*1828mm | |
| Entry Angle | 16-20° | ||
| Crawling Drive | Crawling Drive Type: | Rubber track | |
| Crawling Speed | 2.5km/ h | ||
| Mud Pump | Maximum Flow Rate | 75L/min | |
| Maximum Pressure | 60Bar | ||
| Rotation Diameter | φ150-400min | ||
| Maximum Working Distance | 100m | ||

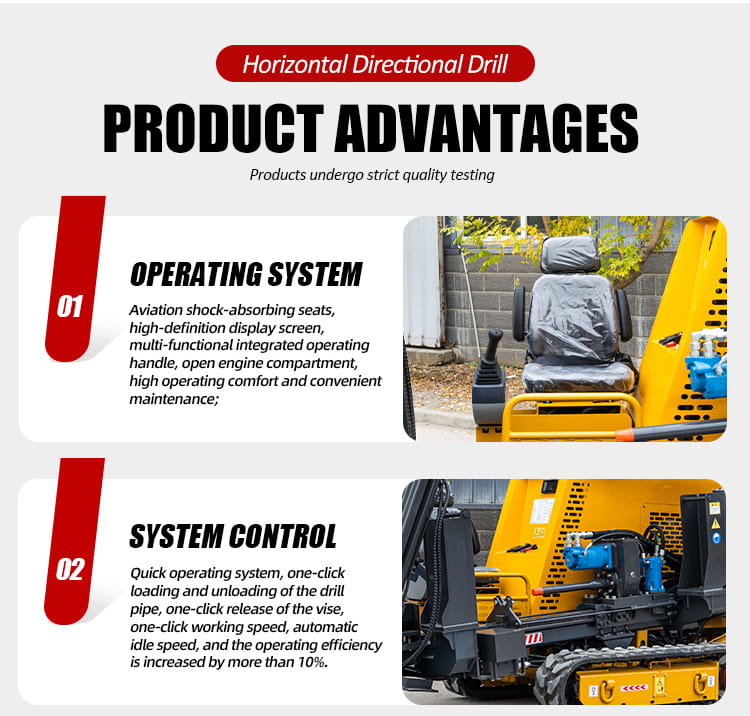

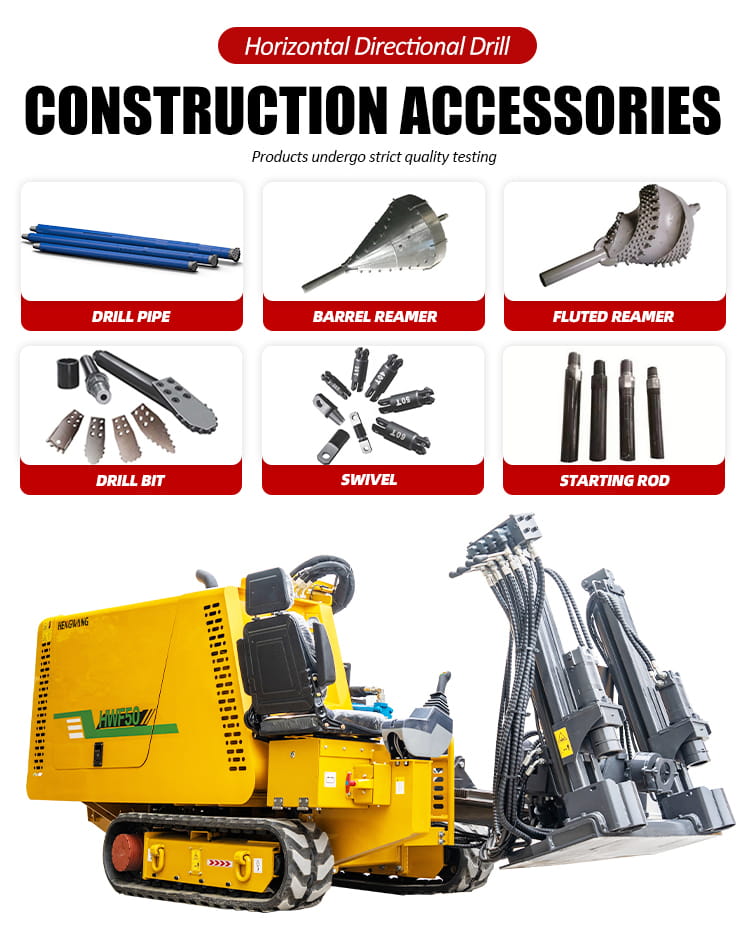

Main Features:

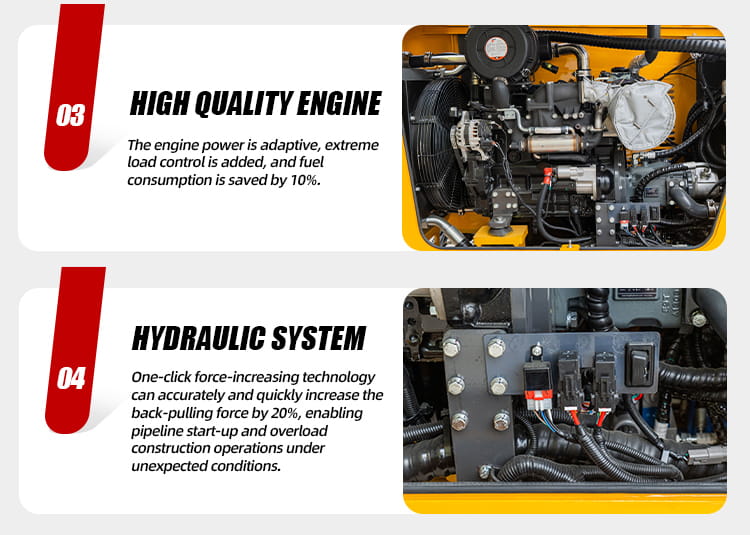

Yanmar Stage IV Engine: Powerful and reliable performance.
Rubber Track Crawler: Suitable for various ground conditions, reducing surface damage.
Compact Design: Ideal for projects with limited working area or short-distance construction, solving the difficulty of working in narrow spaces.
Equipped with Drill Rod Box: Easy single-person operation with high efficiency.
Automatic Hydraulic Anchoring System: Standard configuration for improved stability.
